Offering high performance tankless rack systems as well as options to pair with a storage tank, the TTS Synergy Series offers industry leading performance in a wide range of configurations. Commercial Tankless engineering meets high performance with the TTS Synergy Series.

What is TTS?

The TOTAL TANKLESS SOLUTION

Why Synergy?

We’re Synergizing Multiple Technologies and Resources for the Best Commercial Water Heater System Available.

TTS-SWH SERIES

FRG’s TTS-SWH Series provides the most complete commercial water heater solution in the market. This tankless water heating system provides up to 799,600BTU/hr. in a wall mounted platform for maximizing unutilized space, with built in redundancy and equalization of heating performance. With included brackets for easy installation lift, set, and forget this compact powerful all in one solution.

  • OPC (One Point of Connection)
    • Water, Recirculation Return Line, Power, Gas & Condensation Drain
  • Manifold systems
    • Hot Water Outlet, Cold Water Inlet, Gas, Condensate Drain
  • Building recirculation
  • Includes wall bracket
  • Reduction in labor hours
  • Worry-free installation
  • Designed to fit through 3’-0” x 7’-0” Door Pre-engineered system
  • Pre-configured control wiring
  • Pre-installed system controllers
  • Warranty
    • 10 Years Heat Exchanger per Tankless Unit
    • 5 Years Water Heater Parts and Components
    • 3 Year Circulation Pump
    • 1 Year Labor
  • Additional Accessories:
    • Condensate Neutralizer (Qty 1)
    • Expansion Tank (Non-ASME)- 4.5 Gallon
Installation ManualNCC199CDV Install Manual

Spec Sheets

TTS-SWH2TTS-SWH3TTS-SWH4

S SERIES

The S Series comes with all the necessary equipment needed for a 2 to 6 tankless commercial system.

Features

  • One Point of Connection
  • Aluminum Frame
  • 2 to 6 – Noritz NCC199CDV (GQ60) Tankless Water Heaters with System Controller
  • 1 ½” Water & Gas Manifolds
  • ¾” Condensate Drain Manifold
  • Expansion Tank Included
  • Breaker Box w/ Included Circuit Breakers
  • Pump Controller with Timer
  • Surge Protector
  • Building Recirculation Pump
  • Shutoff Valves
  • Well Immersed Thermistors for Easy Monitoring of Building Hot Water Performance
Installation ManualNCC199CDV Install Manual

Spec Sheets

TTS-S2MINITTS-S3TTS-S4MINITTS-S5TTS-S6

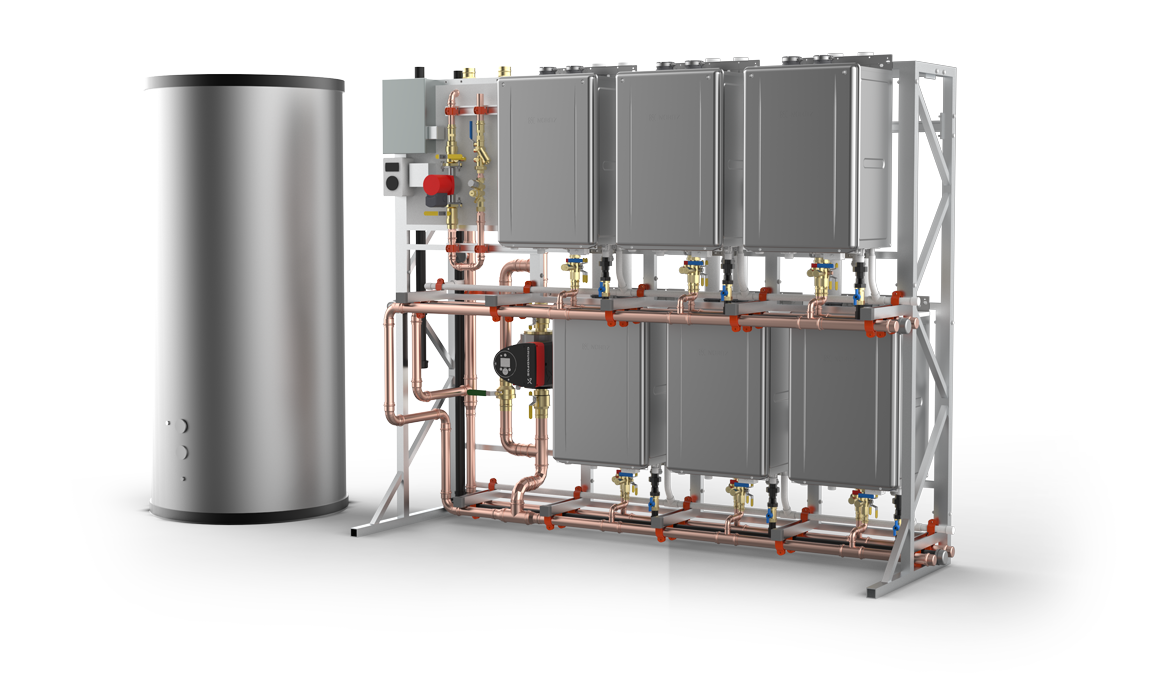

TWST SERIES

The TWST Series provides options for a 2 to 6 tankless water heater system combined with a 120 gallon storage tank to tackle any commercial demand.

Features

  • One Point of Connection
  • Aluminum Frame
  • 2 to 6 – Noritz NCC199CDV (GQ60) Tankless Water Heaters with System Controller
  • 120 Gallon Storage Tank Included
  • 1 ½” Water & Gas Manifolds
  • ¾” Condensate Drain Manifold
  • Expansion Tank Included
  • Breaker Box w/ Included Circuit Breakers
  • Pump Controller with Timer
  • Surge Protector
  • Building Recirculation Pump
  • Storage Tank Recovery Circulator
  • Shutoff Valves
    Well Immersed Thermistors for Easy Monitoring of Building Hot Water Performance
  • 2” Hot Water Supply to Storage Tank
  • Y – Strainer
  • 2” Cold Make Up Water
  • 2” Supply through Pump to Tankless
  • 2” Pump Bypass
  • Integrated 2” Check Valves
Installation ManualNCC199CDV Install Manual

Spec Sheets

TTS-TWST2TTS-TWST3TTS-TWST4TTS-TWST5TTS-TWST6

TWST Footprint Comparison

The FRG TTS Systems are designed to bring business owners space savings on a large scale, cutting down the footprint of similar configurations with tank storage.

System Dimensions

Available in 10 configurations, the FRG TTS and TWST systems are designed to fit your business needs and available space.

Additional Features and Benefits

The NCC199CDV
The NCC199CDV features the best warranty in the commercial tankless industry – 10 years on the unit’s heat exchanger.
OPC - One Point of Connection
  • Water
  • Power
  • Gas
  • Condensate
  • Venting
Most Compact
Ability to combine multiple heaters in the smallest footprint as well as the ability to fit through any commercial door.
Accessories
Professionally integrated accessories within the aluminum frame.
Storage Needs
Providing optional storage water heater integration.
